Heat Transfer Coils
Commercial & Industrial Heating / Cooling Coils

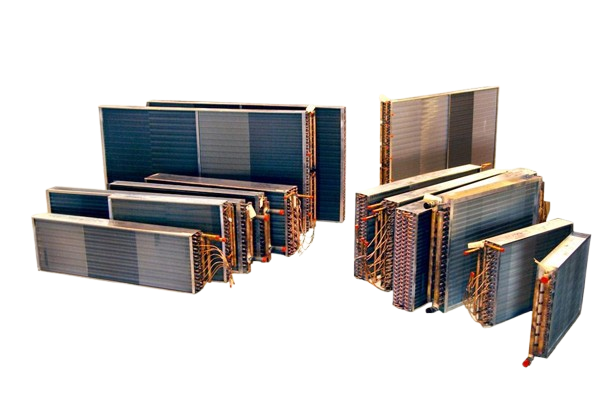

Engineered Air high performance heat transfer coils have found wide acceptance in heating, cooling, dehumidification and heat reclaim applications, ranging from schools, churches, hospitals and high rise buildings to gas plants and manufacturing facilities. Engineered Air heat reclaim coils utilizing glycol or refrigerant provide substantial savings each year to owners of computer rooms, supermarkets, industrial process plants and other applications.
Steam coils are available in standard and “steam distributing” configuration, in both 5/8″ and 1″ diameter tubes.
Engineered Air is proud to be able to provide replacement coils duplicating virtually any type of coil, regardless of make, age, materials, construction or dimensions. Performance is guaranteed and deliveries are fast.
Related Products
Features
- Hot water, glycol, steam heating
- Chilled water, glycol, DX cooling
- Variety of materials and applications
- CSA B51 registration
Automated Optimization
Engineered Air has developed in-house automation software to optimize the selection of hot water, chilled water, steam, refrigerant and heat reclaim coils.
These advanced programs can quickly and accurately optimize coils selections by providing a choice of several coils to satisfy load requirements and system design parameters.
The broad flexibility inherent in the software allows selection decisions based on initial versus operating costs.
Customer assistance is provided by a staff of trained sales people located in Engineered Air offices across Canada and the United States.
Quality Assurance
Pressure testing tanks are but one of the various inspection stages each coil undergoes prior to shipment. Visual and dimensional checks are performed during and dimensional checks are performed during assembly and upon completion to verify manufacturing accuracy.
All coils are visually checked before being subjected to a final pressure test at 300psi under water, to insure compliance with required working pressures. All resale coils bear CSA certification for Canada and the USA and catalog data provides ARI certified ratings for 5/8 water coils. Engineered Air is registered to meet the requirements of the CSA B51 Pressure Vessel Code.
*Due to continuous product development, specifications, dimensions and capacities are subject to change without notice.
